402LZ
• Wide frequency range for extended L-Band, over the air DTV and other signals
• Protocol independent design - transports all modulation formats
• DC pass through and 13V DC modes for LNB power
• Active LNB current limit & short circuit protection (no fuses needed)
• Minimizes coaxial cable length for superior C/N performance
• 22kHz tone on/off for LNB local oscillator control
• RF monitor output for signal peaking and signal distribution
• Tri-color LED status indicators for Link RF drive strength, LNB voltage and DC input voltage level
• Designed for extended temperature range operation
7708 / 7807LR SERIES L-BAND FIBER RECEIVER MODULES

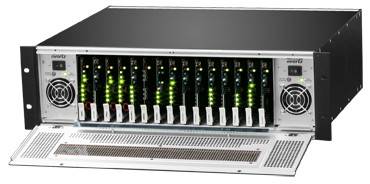

The 7708 / 7807LR Series are modular L-Band fiber receiver cards that complete the link to the 402LZ fiber transmitters. These cards mount in the 7800FR series of modular frames, providing a highly flexible and completely hot swappable (without de-cabling coax or fiber) solution. The 7708LRA is a single channel card, while the 7807LR-2 is a dual-channel card which provides a high-density solution of up to 30 fiber receiver channels in a single 3RU frame.
The 7708 / 7807LR Series provide extensive monitoring and control capabilities both locally at the card edge and remotely through SNMP/VistaLINK®. SmartMON™ capability allows in-band monitoring data sent by a companion 402LZ to also be monitored locally or remotely through VistaLINK®.
Features
• Built-in gain for optimal signal level tuning.
• Gain may be adjusted manually in 0.5dB steps, or through AGC or IGC modes. AGC automatically maintains a fixed target level, while IGC provides simple automatic compensation for fiber loss by making the output level track the input level at the SmartMON™-enabled fiber transmitter.
• Dual, isolated, full-power outputs may be used for extra signal distribution or monitoring functions
• RF output level is independent of optical loss (within available gain range)
• Protocol-independent – passes all modulation formats including 32APSK and other emerging technologies
• Industry’s best specs for frequency response, return loss and C/N, preserving signal quality across the fiber link
• Wide frequency range for extended L-Band, over the air DTV and other signals
RF Over Fiber
EVERTZ 2307LR | Miniature L-Band/Wideband Fiber Receiver |
---|---|
EVERTZ 2400ODU-8 | Outdoor enclosure for RF fiber system |
EVERTZ 2400PSUA-8 | Eight Output Power Supply for 2408LT |
EVERTZ 2406BIAST-2 | Dual Channel Bias Tee with L-Band / DC Passthrough and 10MHz Reference Mux with Optional Built-in LNB Power |
EVERTZ 2408LT / 2406LR | L-Band/Wideband Standalone Fiber Transmitter / Receiver Series |
EVERTZ 7706LT / 7706LR | Wideband RF Fiber Transmitter / Receiver |
EVERTZ 7708LT / 7708LRA | L-Band/Wideband RF Fiber Transmitter / Receiver Series |
EVERTZ 7807LT-2 / 7807LR-2 | Dual L-Band/Wideband RF Fiber Transmitter / Receiver with VistaLINK® PRO and SmartMON™ |
EVERTZ 7808RFT / 7808RFR | Single Channel Wideband RF Fiber Transmitter / Receiver with SmartMON, VistaLINK® PRO, and WebGUI Support | EVERTZ 7808RFT-2 / 7808RFR-2 | Dual Channel Wideband RF Fiber Transmitter / Receiver with SmartMON, VistaLINK® PRO, and WebGUI Support | EVERTZ 7808T13-8RF / 7808R-8RF | Wideband RF Fiber Transmitter / Receiver for N+1 Redundant System | EVERTZ Wireless RF Over Fiber Series | RF Over Fiber Transmitters and Receivers for Wireless Microphones/Video Applications |
